Soft Metal Melting Furnaces
for melting lead, babbitt, tin, zinc, type metal, low or medium-fusion metals
Download Product Manuals
Johnson Gas 15 Thermocouple Safety Control
Johnson Gas 200 No Safety Manual Temp
Johnson Gas 200 Thermocouple Safety Control
Johnson Gas 200 Thermocouple Safety Fuji Auto Temp
Johnson Gas 313 Thermocouple Safety Control
Johnson Gas 313 Thermocouple Safety Fuji Auto Temp
Johnson Gas 379 Thermocouple Safety Fuji Auto Temp
Johnson Gas 616 Manual Temperature Control No Safety
Johnson Gas 616 Thermocouple Safety Control
Johnson Gas 616 Thermocouple Safety Fuji Auto Temp

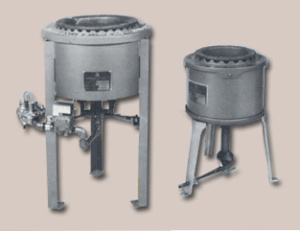

No. 313 and No. 616 Soft Metal Melting Furnaces
Number 313
Number 616
These popular Johnson Furnaces are designed for melting lead, babbitt, tin, zinc, type metal, scrap and all other low or medium-fusion metals and alloys.
Furnaces come equipped with powerful, patented Johnson Auto-Blast bunsen burners (each with separate valve and pilot). Heavy insulation assures fast melting and recovery rate.
These rugged furnaces are designed to meet the high production demands of industry. They are made of heavy gauge welded steel with rugged cast iron legs and top rims.
All models are supplied with cast iron pots for ladling. Removable lid and automatic temperature controls are available on Model Numbers 200, 379, 313, and 616 at extra cost.
No. 379 (left), No. 15 (center), No. 200 (right)
Specifications:
| Furnace Number |
Lead Capacity |
Pot Dimensions (Inches) |
Overall Dimensions (Inches) |
No. Burners |
Gas Connection (Inches) |
Gas Input |
Approx. Shipping Weight |
||
| Lbs. | Inside Diam. |
Inside Depth |
Height | Diam. | Pipe Size | BTU/hr. | Lbs. | ||
| 15 | 18 | 5-1/2 | 3 | 13 | 7 | 1 | 1/4 | 13,000 | 19 |
| 200 | 50 | 7 | 5 | 21 | 12 | 1 | 1/4 | 26,000 | 84 |
| 379 | 150 | 9-3/4 | 7 | 28-1/2 | 17 | 3 | 3/4 | 39,000 | 180 |
| 313 | 300 | 13 | 6-3/4 | 28 | 21-1/2 | 3 | 3/4 | 78,000 | 280 |
| 616 | 600 | 16-1/2 | 10 | 30-1/2 | 27-3/4 | 6 | 1 | 156,000 | 398 |
Gas Pressure: 4-1/2″ to 14″ W. C. Nat. Gas; 11″ W. C. LP Gas
